Answer
Height of the valve
The normal height for valves in bathtub shower sets is 28 inches, or 2 feet and 4 inches. If you are installing a valve in a shower stall, set it at the typical height of 48 inches (4 feet).
What is the normal height for a shower head in this situation?
around 6 feet 8 inches tall
As a result, the issue becomes, how high should the shower drain be?
The drainpipe should be installed such that it is about 3/4 to 1 inch below the lip of the shower drain. It is possible that you will have to set the shower base in place to indicate the correct height before removing the pan to cut the pipe.
Another thing to consider is where the shower controls should be installed.

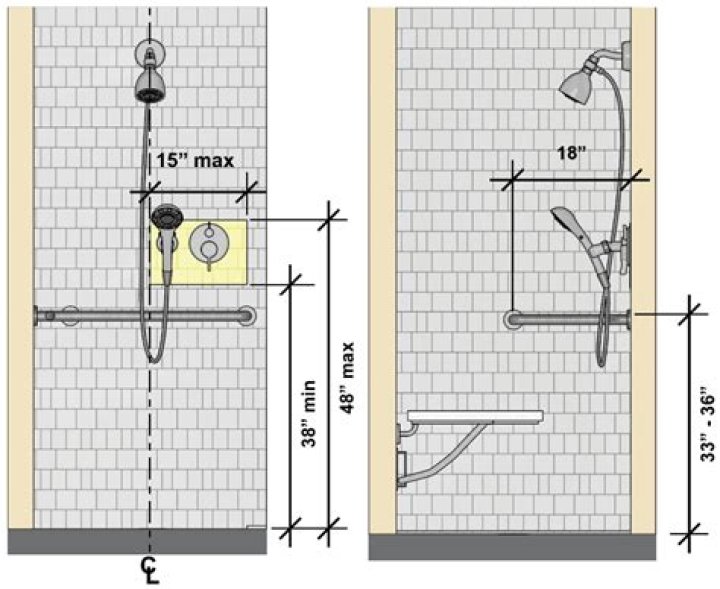

Because of this, the shower controls should be accessible from both within and outside the shower spray, and they should be situated 38″-48″ above the floor, depending on how tall the user is. Both within and outside of the tub, the tub controls should be easily accessible. The controls should be situated between the rim of the bathtub and 33″ above the floor.
What is the procedure for adjusting the adjustable height of a shower head?
Attach a mounting bracket to either end of the sliding bar by pushing it in. Maintain the slide bar’s position against the shower wall, with the bottom end of the bar about 52 inches above the tub’s bottom. (This positioning enables you to modify the showerhead’s height from about 52 inches to 76 inches, which will fit the majority of individuals.)
There were 23 related questions and answers found.
What is the normal size of a shower?
Dimensions that are typical In most cases, the shower cubicle is 36 inches in width and 36 inches in depth. Some more frequent sizes include 36 inches by 42 inches and 36 inches by 48 inches, to name a few. Shower stalls measuring 30 inches by 30 inches are ideal for tiny bathrooms because they blend functionality with space-saving design.
What is the ideal shower size for a pleasant experience?
While you may find common shower sizes as tiny as 32′′ by 32′′, the majority of individuals would feel more comfortable in a shower that is 48′′ x 36′′ in size. Having a shower with the minimum size of 60″ x 36″ is a fairly frequent advice if your property has a little extra square footage available.
What kind of space do you need between the toilet and the shower?
The positioning of a toilet Approximately 15 inches on each side, from the centre of the toilet to the edge of the bowl. As a result, if you want to put a shower next to the toilet, the shower cannot be closer than 15 inches to the toilet’s centre while still being a minimum of 30 inches in length.
What is the proper height for a shower mixer?
For the second time, the water controls are not set at a certain height. Make a note of whether the controls operate in both the tub and the shower, as you will want to put them lower in order to accommodate tub users. Shower-only controls are typically placed between 36 and 48 inches above the floor.
When it comes to shower faucet valves, what is the industry standard height?
The normal height for valves in bathtub shower sets is 28 inches, or 2 feet and 4 inches. If you are installing a valve in a shower stall, set it at the typical height of 48 inches (4 feet). Installation: Install faucets at the same height as the valve and at a distance of equal distance from the valve.
What is the location of the shower valve?
In most cases, this supply valve may be found in the bottom left corner of the toilet tank. Look around the tub or shower for an access panel if you have a shower or a tub. A toilet may be located on the other side of a wall from a bathtub or shower.
Is it necessary to have a vent for a shower drain?
All of us are familiar with the fact that every toilet, bathtub, sink, shower, and so on will have a drain to transport the water away to sewage treatment or your septic system. You must install a plumbing vent on the drain before you can install a tub or toilet or sink or floor drain because they all need to function correctly.
What is the proper thickness of a mortar bed for a shower?
If you are utilising a premade shower pan, the maker of the pan should offer specific recommendations on how thick the mortar bed should be when installing the shower pan. Ideally, the mortar bed should be 2-3 inches thick on the outside border and somewhat less at the drain if you are putting tile.
When it comes to shower pans, what is the right slope?
Slope of the Shower Floor The suggested minimum slope for a shower floor is around 4 percent, or a 1/2 inch drop for every 12 inches from the shower walls to the drain, in order for the water to drain properly. Traditional tile shower construction creates this slope in the mortar pre-pan, which is then filled with tile.
