Answer
Because of the intricacy of the three-dimensional surfaces under management, the Profile of a Surface is often measured using a coordinate measuring machine. A reasonably basic surface, such as a corner radius, may be called out and the tolerance can be checked using a height gauge.
In the same vein, many wonder what it means to have a surface profile tolerance?

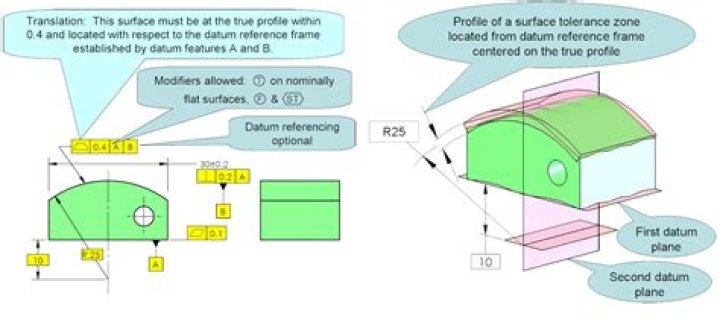

When it comes to geometric design and technology, profile tolerance refers to the uniform border surrounding a surface within which the components of the surface must reside. Profile is a complicated tolerance that governs the shape, size, orientation, and sometimes even the placement of a feature all at the same time. The profile tolerance applied to a curved surface is seen in the upper picture.
Also, how can I see the line that represents my profile?
The profile of a line is measured using a gauge that is referred to the real profile at the exact cross-section being measured in question. Given that each component may be divided into an endless number of 2D cross-sections, the number and positions of measurement points can be defined on the design.
As a result, what exactly is the profile of a surface?
The profile of a surface specifies a 3-Dimensional tolerance zone around a surface, which is generally an advanced curve or form in nature. The tolerance zone must include the whole surface where the radius is spelled out, such as a fillet on a welded item, in order for it to be considered valid.
Is it necessary to have a datum for a profile of a surface?
Profile may influence the shape, placement, orientation, and size of an object, or any combination of these. Using profile with or without datum references and with or without fundamental dimensions is completely optional.
There were 22 related questions and answers found.
What exactly does the term “form tolerance” mean?
Form Tolerance – A form tolerance specifies the amount by which an actual surface is allowed to deviate from the specified geometric shape. These tolerances are expressed in terms of size, flatness, straightness, parallelism, perpendicularity, angularity, roundness, cylindricity, the profile of a surface, and the profile of a line, among other characteristics.
When is it appropriate to utilise a profile of a surface control to find a surface?
The Profile of a Surface symbol is used in geometric design and technology to define a three-dimensional tolerance zone around a surface, which is often a complicated curve or form. Because of this requirement, every point on the surface must fall within a tolerance range that closely matches the contour of the surface.
Does the profile tolerance have any effect on the position?
Unlike two-dimensional tolerances, three-dimensional tolerances are applicable in all directions, regardless of the drawing perspective the tolerance is set in. Profile tolerances may be imposed unilaterally or bilaterally, depending on the situation. Tolerances in a profile may be used to govern the placement, orientation, size, and shape of a feature.
What exactly is the profile of a line?
The profile of a line represents a tolerance zone around any line in any feature, which is often of a curved form, and may be used to describe any tolerance zone. Line profiles are created by taking a cross section of a line at any point along its length and setting a tolerance zone on each side of the line profile.
What does the flatness sign look like?
GD&T Flatness is a relatively simple concept to grasp. It is a widely used symbol that refers to the flatness of a surface, independent of the presence or absence of additional datums or characteristics. Whenever a feature must be defined on an illustration, it is advantageous if the feature must be consistently flat without tightening any other dimensions on the illustration.
When a line is profiled, what is the difference between that and when a surface is profiled?
However, one significant distinction is that the profile of a line generates a two-dimensional tolerance zone that restricts the position and size of individual line components on a feature or on a surface. In most cases, the profile of a line is applied to components with varied cross-sections, or to certain cross-sections that are crucial to the operation of the part.
What is the method of measuring surface finish?
It is possible to test surface finish in two ways: using touch and non-contact techniques. Profilometers are devices that measure surfaces by dragging a measuring stylus over the surface. Contact techniques are also used in this manner.
What is replica tape, and how does it work?
It is made up of a layer of compressible foam that is adhered to an incompressible polyester substrate that has a very consistent thickness (50 m + 2 m) and is exceptionally durable. A reverse reproduction of the surface is formed when the foam is pushed against a roughened steel surface and compressed.
What is the definition of profile measurement?
An essentially cross-section of the surface of a measureable feature is represented by a profile measurement. Alternatively, it enables producers to do a more thorough analysis of a form that they already know is a characteristic of the surface they are measuring. Their procedures and output will benefit from this since they can better identify and measure the quality of their work.
What is the definition of circular runout?
Circular Runout is defined as follows: Circular Runout is a tolerance zone that is circular in shape and related with a datum axis in geometric design and technology. A feature or surface’s ability to fluctuate with respect to a datum when the component is rotated 360 degrees around the datum axis is controlled by this parameter.
What is a blast profile, and how does it work?
SURFACES THAT HAVE BEEN BLAST CLEAN An abrasive blast cleaned surface has a complicated three-dimensional structure, and there are a variety of techniques to determine the roughness or texture of a surface using various methods. Surfaces that have been abrasive blast cleaned have a profile that is at the higher end of the range for profile measuring techniques.
